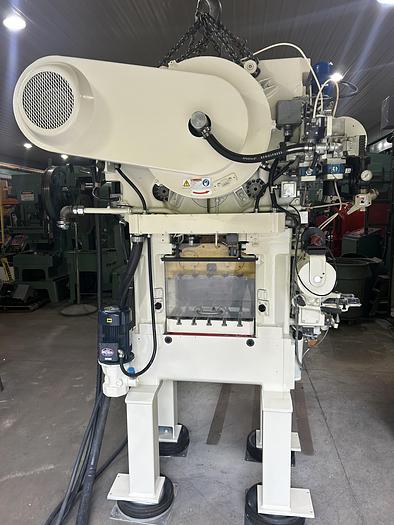

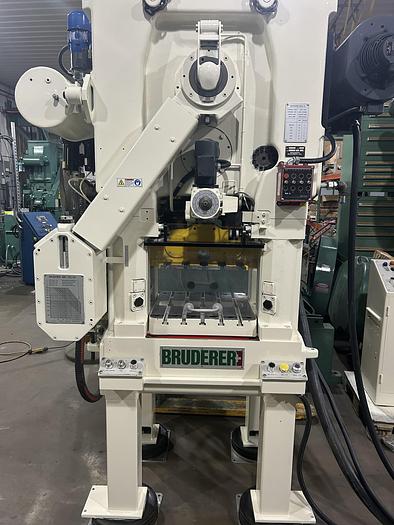

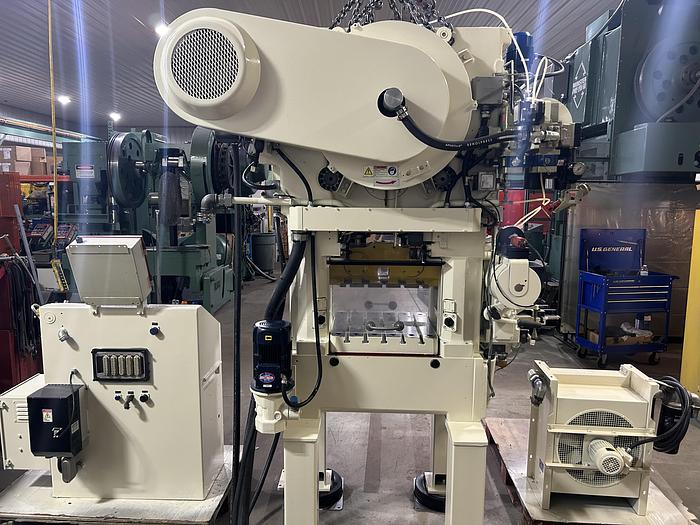

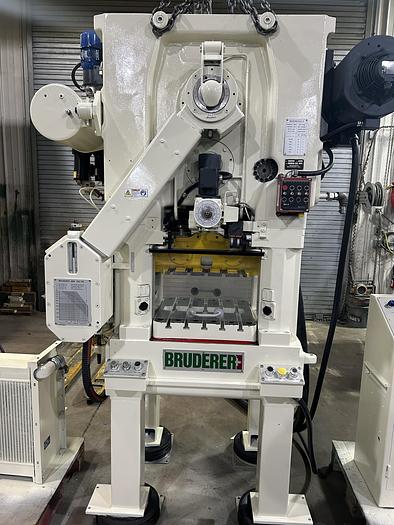

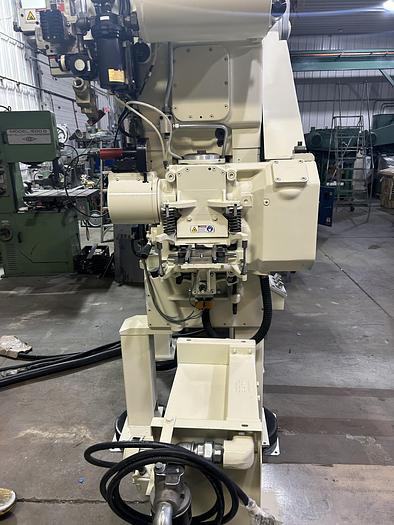

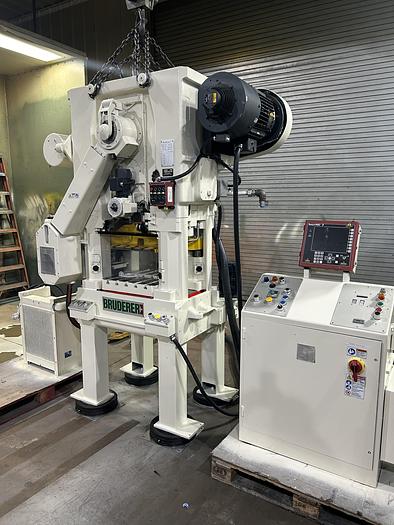

BRUDERER BSTA 30V

Specifications:

• 30 ton Capacity
• .5"-1.5" Stroke
• 9.17" Shut Height over Bed
• 2" Adjustment
• 20.86" LR x 20.86 FB Bed Area
• 20.86" LR x 14.17 FB Slide Area

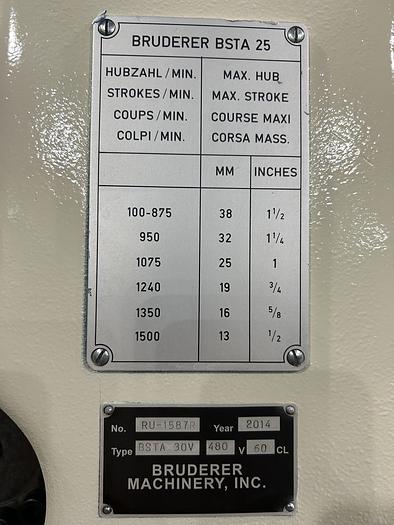

• 100-1500 VSPM

This Press was rebuilt by Bruderer (10 years ago).

During the rebuild, the following upgrades were made:

1. VFD controlled main motor instead of the BHG, all new
2. Separate Ram-lock pump, all new
3. 30HL Oil-Pump with new motor, all new
4. ROSS Double Safety Valves, all new
5. Pneumatic components, all new
6. Press mounted operator controls, all new
7. All electrics components new
8. Double safety guard switches, all new
9. SmartPac1 with resolver, all new
10. DiPro 8, new

Additional Work by Bruderer

• Remove Ram & Re-Grind
• Re-Grind Bolster Plate
• Check out feeder
• Press is mechanically check out

Standard Equipment and Features

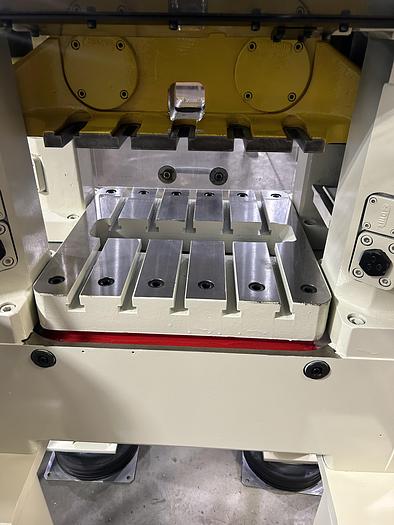

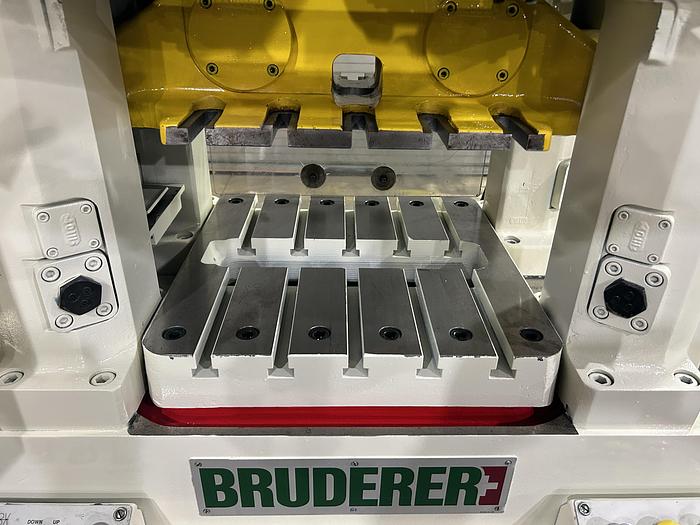

• T-Slotted Bolster Plate
• Cylindrical Post Guides
• Air Clutch and Brake with Selector Controls

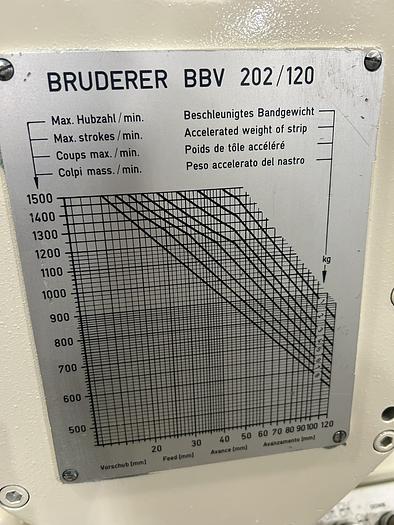

• Bruderer Feeder Model#: BBV202-120
• Top Driven Design
• Bruderer Controls w Console

Conditioning/Prep

• Press will cleaned & painted in Paint Booth (2 Part Epoxy: Bruderer Green or Tan)
• All Press features & functions will be in good running order. Mechanically & Electrically
• Machine inspect report by a Bruderer Service Tech.
• If any parts are required we only use Bruderer/OEM Parts.
• Video of the Press running prior to shipment.
• Wenco has been a long standing member of MDNA, NFIB, NJBIA
• Wenco extends all OEM warranties for new parts

Terms:

• 30% with Order, Balance prior to shipment.
• F.O.B. Ringwood, NJ
• Lead Time: 6-7 weeks
