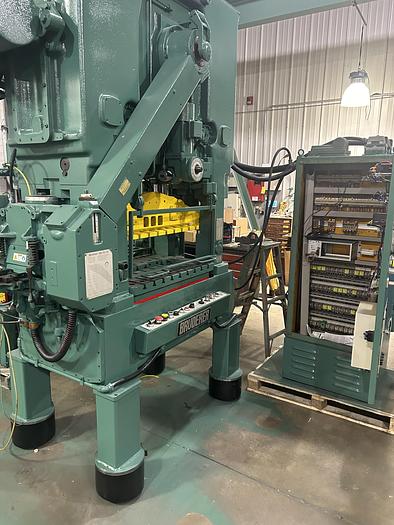

1991 BRUDERER MODEL BSTA60IIEL LONG BED HIGH SPEED PRESS

TONNAGE 60 TON

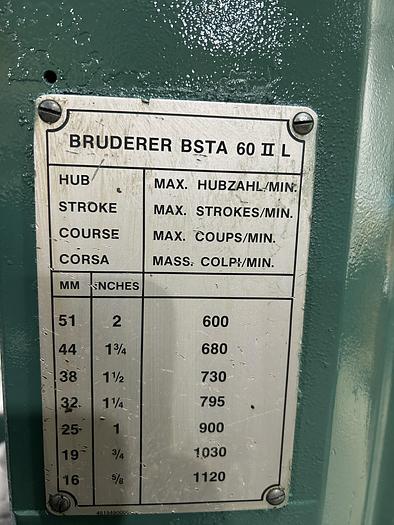

STROKE SPEED SHUT HEIGHT

5/8"(16mm) 1120 9.5" TO 11.57"

3/4"(19mm) 1030 9" TO 11.51"

1"(25mm) 900 8.87" TO 11.39"

1-1/4"(32mm) 795 8.74" TO 11.39"

1-1/2"(38mm) 730 8.62" TO 11.14"

1-3/4"(44mm) 680 8.50" TO 11.02"

2" (51mm) 600 8.36" TO 10.88"

BOLSTER SIZE 37.4" L-R X 25.59"

FEED BBV202

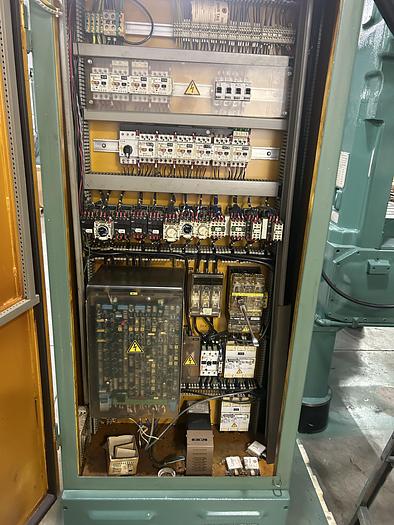

CONTROLS

• Standard Bruderer Press Control
• Relay base circuitry
• Motor - DC Motor
• Lube pump with Cooler
• Motorized Ram Adjust
• Speed indicator

OPTIONS:

• WINTRISS SMARTPAC PRO $7250
• Bruderer Software $440

• Die Protection
• DiProPac 8 channels Inputs $1150
• DSI 2 $1695

• Programmable Cam Outputs
• ProCamPac 8-Channel $850
• Assy PC Cam Output 8SS $955
• High Speed Relays DC $85 each
• High Speed Relay AC $85 each

• Tonnage Monitor
• Autosetpac $3495
• Strain Links w/HH Comm (4) $1960
• Strain link Cable (4) $580

• Installation: $4500

Terms: 30% with Order, Balance prior to shipment

F.O.B. Ringwood, NJ

Lead Time: 6-7 weeks (with options)
