BRUDERER BSTA 30II

Specifications:

• 30 ton Capacity
• .5"-1.5" Stroke
• 9.17" Shut Height over Bed
• 2" Adjustment
• 20.86" LR x 20.86 FB Bed Area
• 20.86" LR x 14.17 FB Slide Area
• 100-1500 VSPM

Standard Equipment and Features

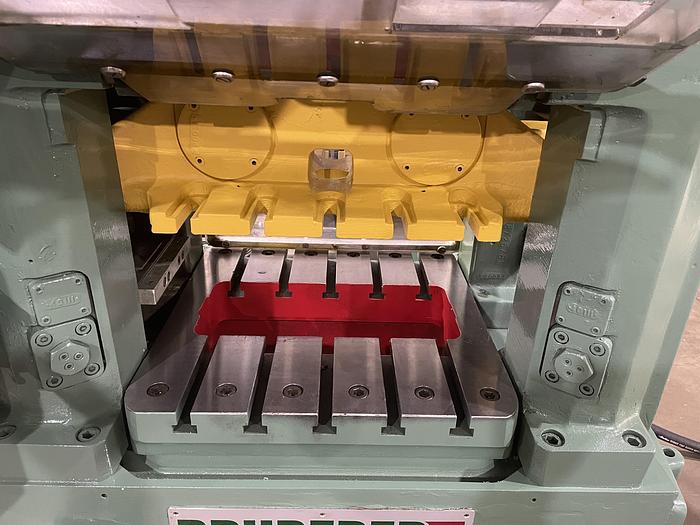

• T-Slotted Bolster Plate
• Cylindrical Post Guides
• Hydrostatic Vari-Speed Drive
• Air Clutch and Brake with Selector Controls
• Bruderer Feeder Model#: BBV202-120
• Top Driven Design
• Bruderer Controls With Console

Control Options/Upgrades:

• Wintriss SmartPac Pro Press Automation Controller
• DiPro Pac 8 sensor inputs w DSI-2 (Die Protection)
• ProCamPac 8 Channels (Programable Limit Switches)
• Installed: Mounted & Wired into the existing Bruderer Press/Motor Control Console
• Wintriss Smart Pac Pro Upgrade $ 15,750

Wenco : Warranty/Reconditioning.

• Press will cleaned & painted in Paint Booth (2 Part Epoxy: Bruderer Green or Tan)
• All Press features & functions will be in good running order. Mechanically & Electrically
• Machine inspect report by a Bruderer Service Tech.
• If any parts are required we only use Bruderer/OEM Parts.
• Video of the Press running prior to shipment.
• Wenco has been a long standing member of MDNA, NFIB, NJBIA
• 30 Day Return policy (call for specifics).
• Wenco extends all OEM warranties for new parts, New Controls, etc

Terms:

• 30% with Order, Balance prior to shipment.
• F.O.B. Ringwood, NJ
• Lead Time: 5-6 weeks (Wintriss Options will extend lead time)

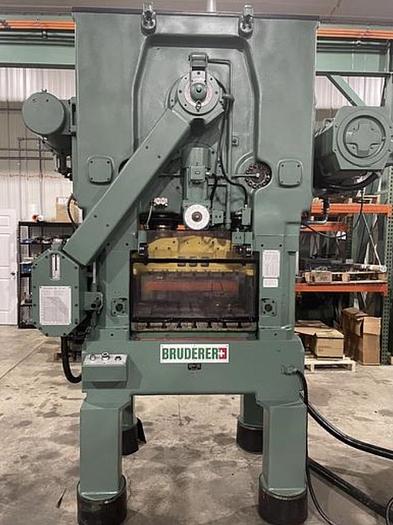

NOTE: Picture is of a sister press (photo coming soon). This photo is of a Bruderer Press Wenco completed recently.
