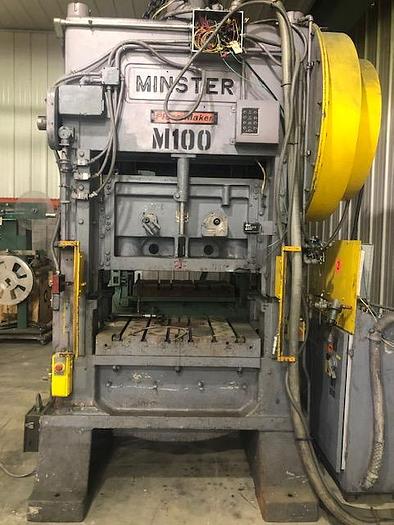

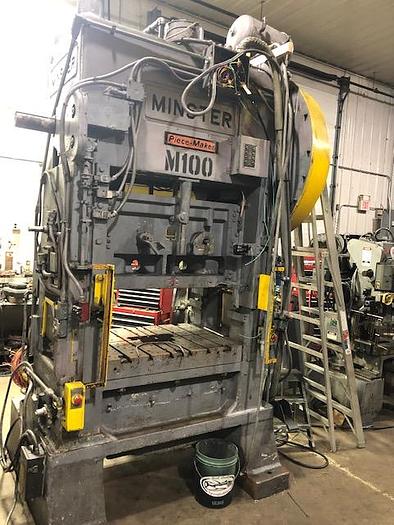

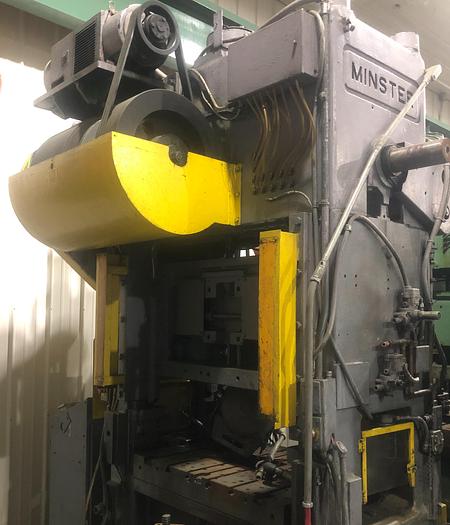

1977 MINSTER P2-100-42

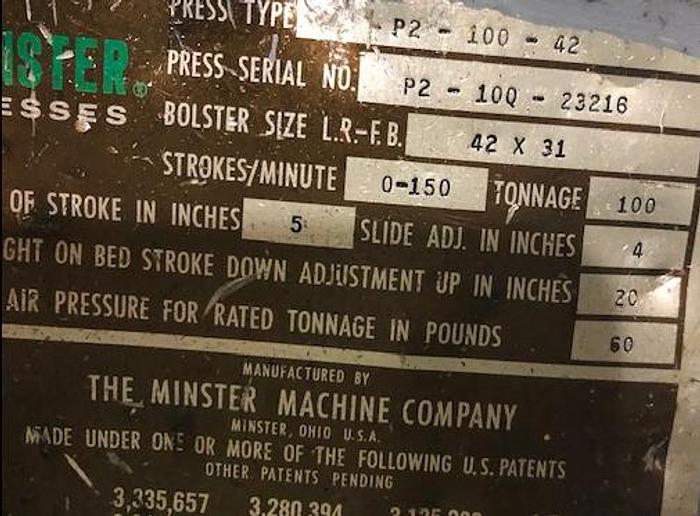

• 100 U.S. Tons Capacity (910 kN) • 5.00 in. Stroke (125 mm) • 4.00 in. Slide Adjustment (100 mm) • 20.00 in. Shutheight, SDAU, on Bed (508 mm) • 42.00 x 18.50 in. Slide Area (1067 mm x 470 mm) • 42.00 x 31.00 in. Bed Area (1067 mm x 787 mm) • 35.00 x 15.00 in. Bed Opening (889 mm x 381 mm) • 44.00 in. Between Gibs (1118 mm) • 16.00 in. Upright Opening (405 mm) • 0 – 150 SPM • 15 HP, 1800 RPM Drive Motor (11.25 kW) • 480VAC/60Hz/3ph Incoming Voltage • 26,600 lbs. Approx. Weight, Press Only (11,970 kg) • Single Geared, Cast Four Piece Frame • Minster Combination Air Clutch & Brake • Pneumatic Counterbalance • Drip Troughs Cast Integral to Bed • Long Barrel Type Air Motor Slide Adjustment • Arranged for one Cross Bar Knockout • Minster Monitorflow Recirculating Lube System • Minster Centralized Motor & Clutch Control • Eddy Current Drive
